1ELF3VY ...... 1ELF16VY
Short Description:
| Nominal current: | 3, 6, 10, 16A |
|---|---|
| Nominal voltage: | 230V |
| Frequency: | 40-65 Hz |
| Shielding: | IP20 |
| Current loss: | 0,35mA / 230V 50 Hz, 0,5 mA při odpojení N |
Images
schema

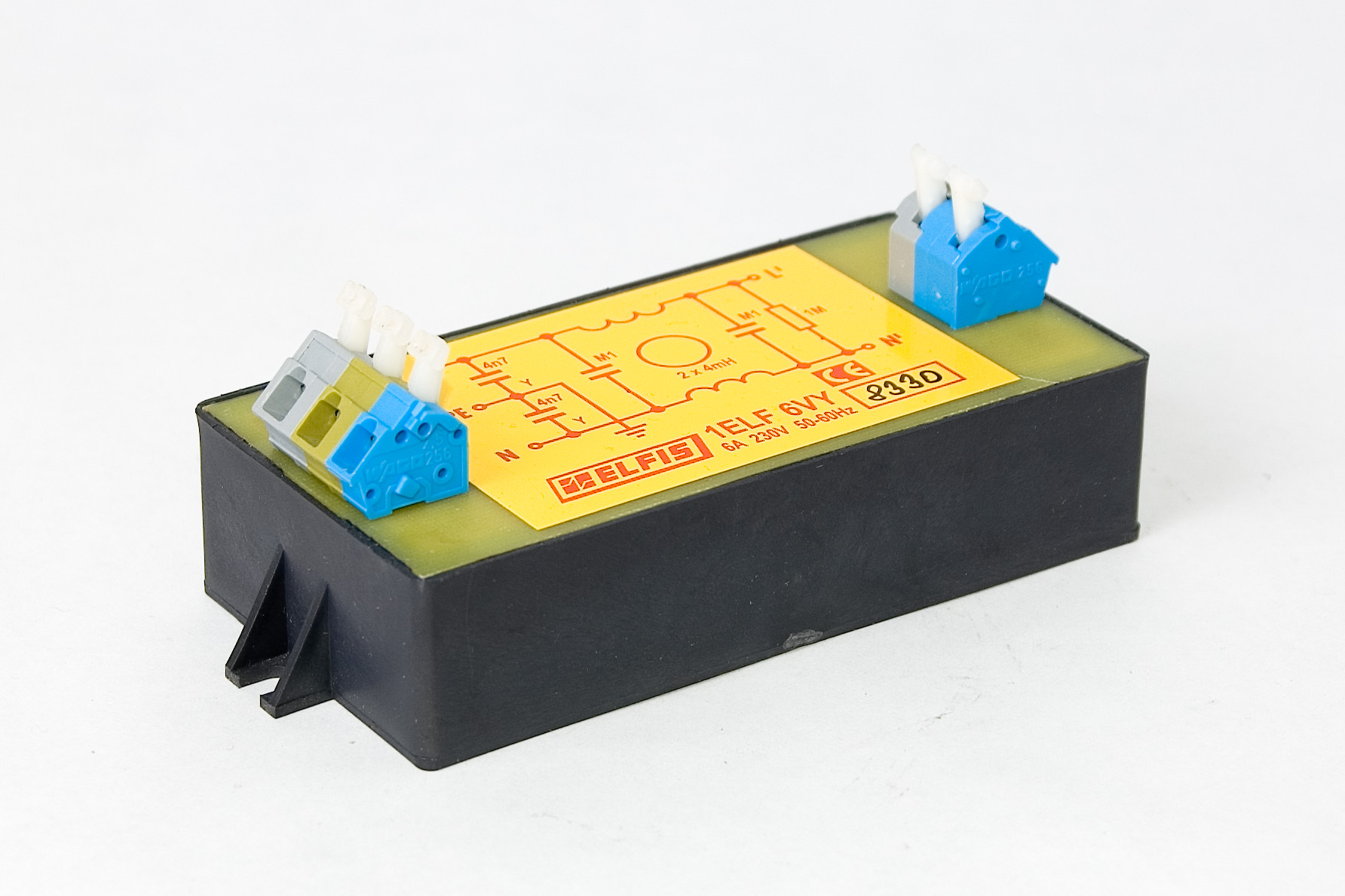

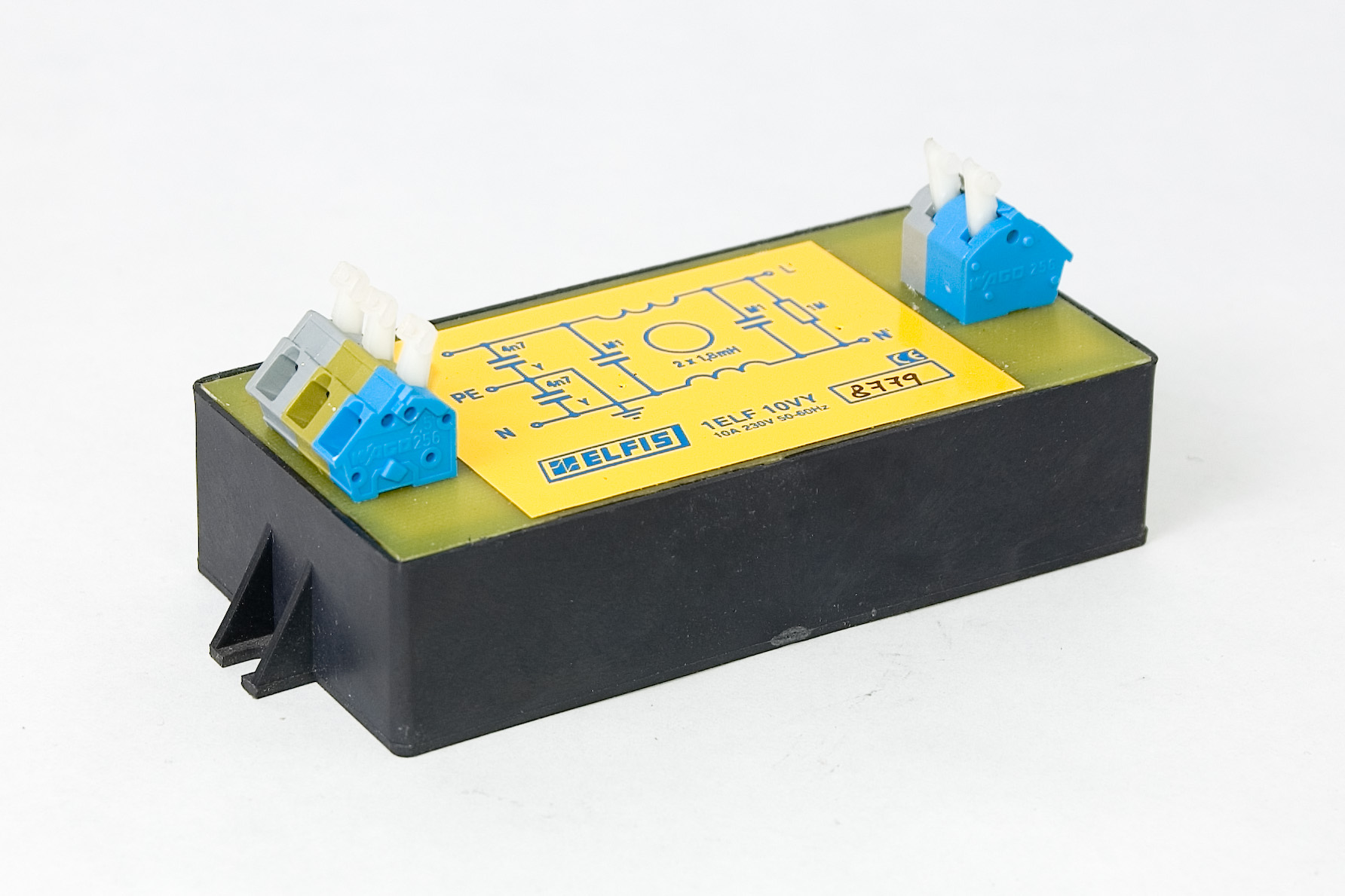

1ELF10VY
1ELF16VY

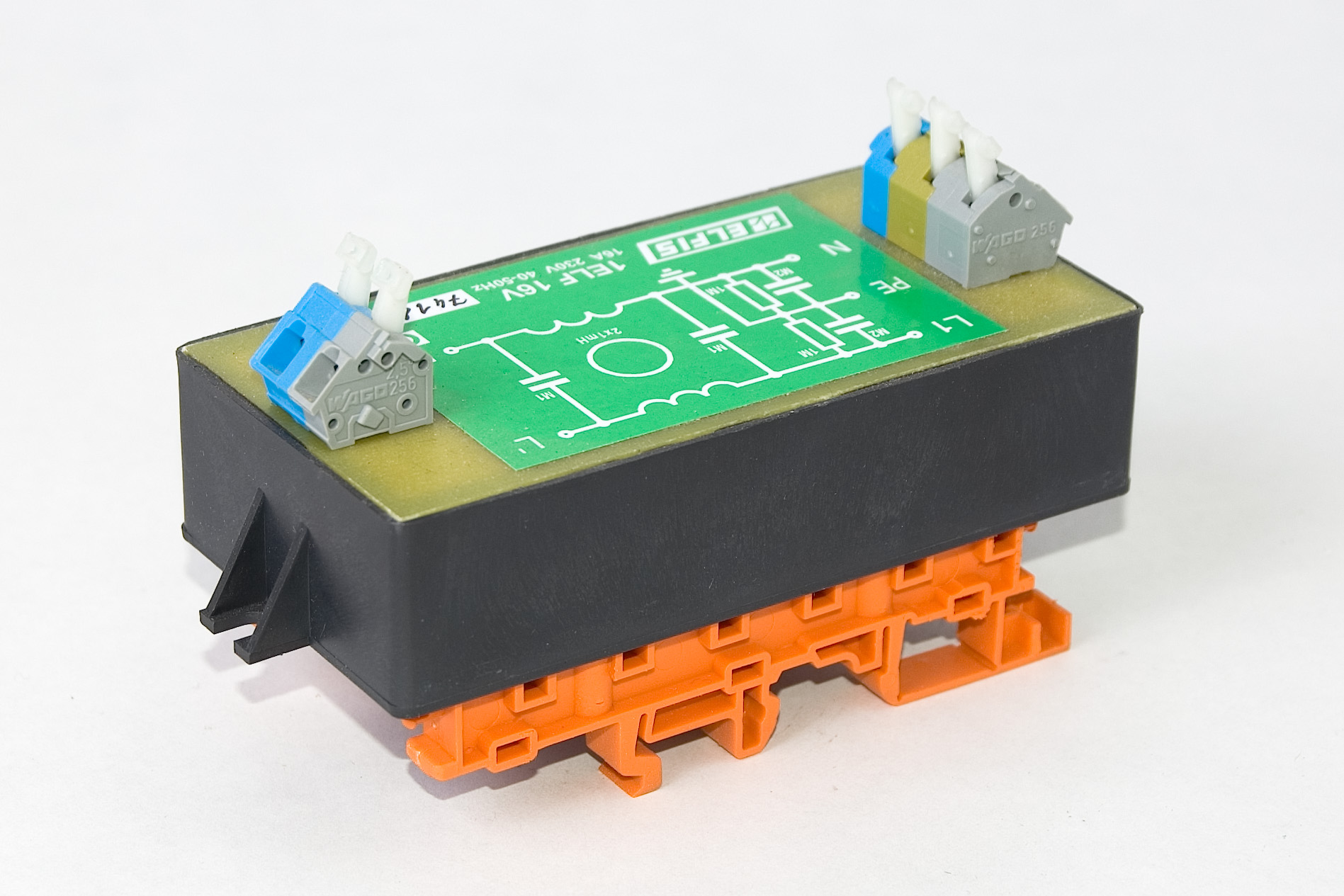

1ELF16VY/D
Description
1- phase EMI filters 3 - 16 A 230 V 40 - 65 Hz For details look pdf
Simple filter with low leakage current
leakage current 0,35mA / 230V 50 Hz, 0,5 mA max - disconecting N-neutral
attenuation in the 150 kHz - 30 MHz band
Small dimensions, WAGO terminals
cabinet mounting screws or on DIN rail
| current (A) | typ | typ on DIN rail | ||
| 3 | 1ELF3VY | 1ELF3VY/D | ||
| 6 | 1ELF6VY | 1ELF6VY/D | ||
| 10 | 1ELF10VY | 1ELF10VY/D | ||
| 16 | 1ELF16VY | 1ELF16VY/D |
Leakage current: 0,35mA / 230V 50 Hz, 0,5 mA max - disconecting N-neutral
Terminals L,N and PE are normally onnected to net, terminals L', N' to interference source
USAGE:
mainly for equipments with flexible cables where low leakage urrent is required
- EMI suppression of frequency converters for asynchronnous motors
- EMI suppression of switching sources
- EMI suppression of DC source converters
- EMI suppression of individual interference sources
- increase of equipment resistance to external interference
