3-phase EMI suppress filter 3 - 20A  3 x 440V
High attenuation in the 150 kHz - 30 MHz band

Filters OM are used for suppress EMI in industrial environments and often in household environments, business and light industries
Minimum values of leakage current
Small dimensions, can be installed on the side
Can be installed under OMRON and YASKAWA frequency converters

USAGE:
* EMI suppression (ČSN EN 61000-6-3,61000-6-4, ČSN EN 55011, 55014)
* EMI suppression of frequency converters for asynchronnous motors
* EMI suppression of individual sources of EMI
* EMI suppression of entire switchboards
* increase of equipment resistance to external EMI

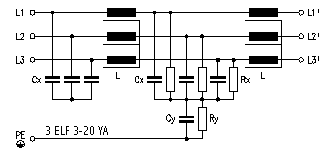

Terminals L1, L2 a L3 of filter are connected to net, terminals L1', L2' a L3' to the EMI source
Sizes and details see in pdf
