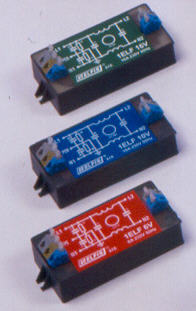

1ELF3V ...... 1ELF16V
Short Description:
| Nominal current: | 3, 6, 10, 16A |
|---|---|
| Nominal voltage: | 230V |
| Frequency: | 40-65Hz |
| Shielding: | IP20 |
| Current loss: | 14,5mA / 230V 50 Hz, 19,2 mA při odpojení N |
Images
schema

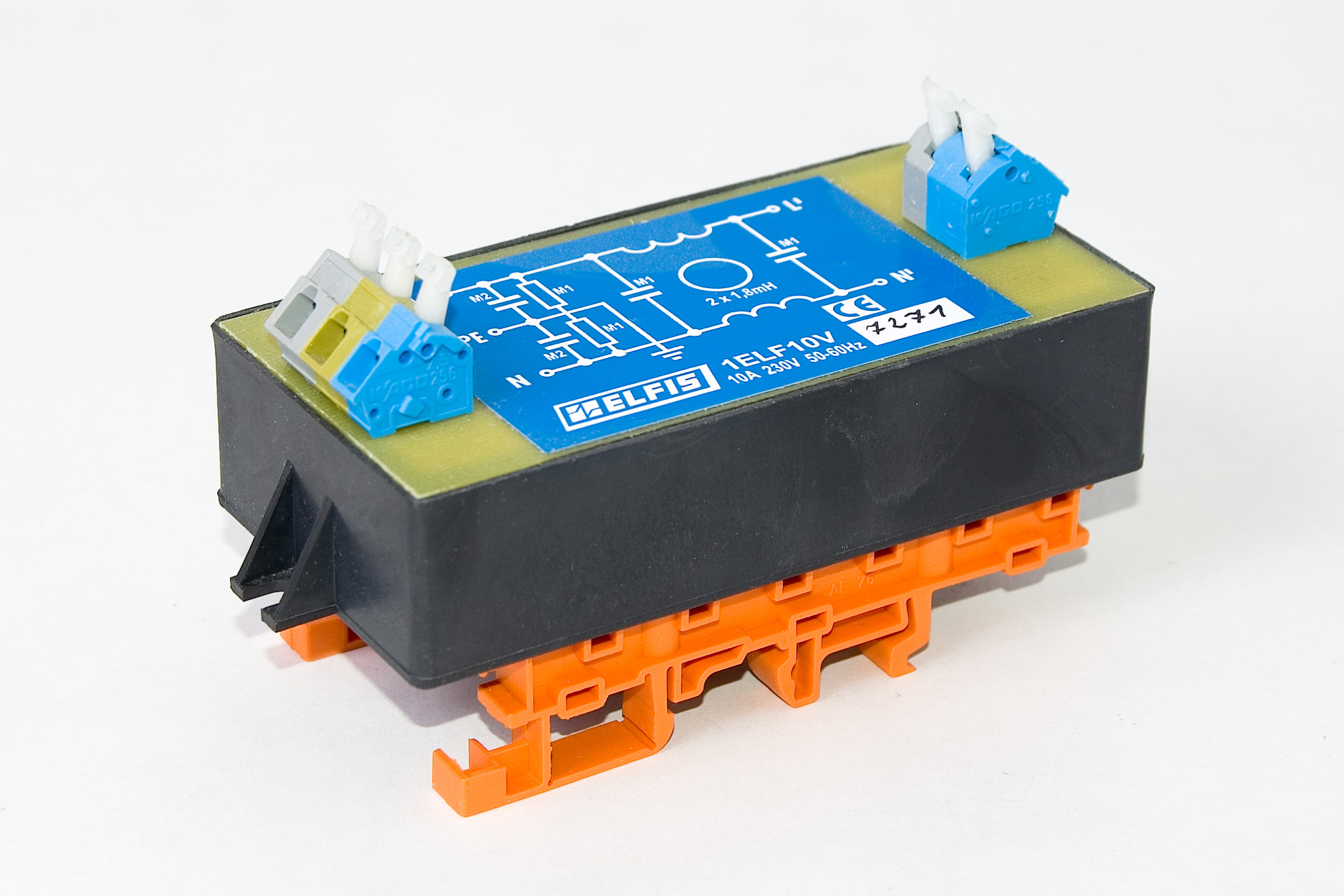

1ELF10V/D

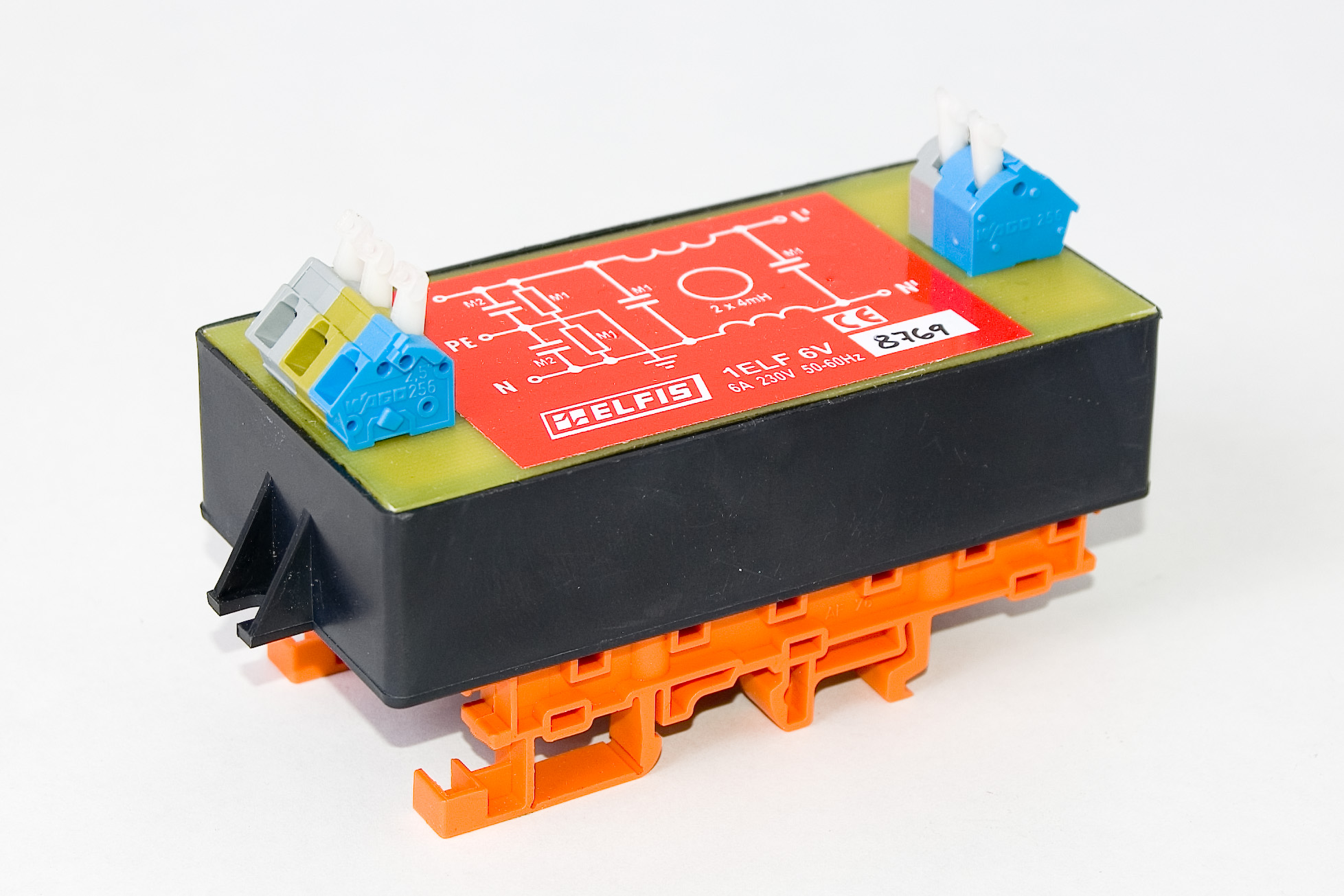

1ELF6V/D
Description
1- phase supress EMI filters 3, 6, 10, 16 A 230 V 40 - 65 Hz For details look pdf
Simple filter
Supress interference in 150 kHz - 30 MHz band
IP20 shielding - usage of screwless terminals WAGO
cabinet mounting screws or on DIN rail
Terminals L, N and PE are usually connected at network, terminals L ', N' connected to the source of interference DC source filter option has terminal designations C, D and C ', D' and otherwise identical properties to be set in order.
Leakage current: 14,5mA / 230V 50 Hz, 19,2 mA when N is disconnected
| current (A) | type | type on DIN rail | ||
| 3 | 1ELF3V | 1ELF3V/D | ||
| 6 | 1ELF6V | 1ELF6V/D | ||
| 10 | 1ELF10V | 1ELF10V/D | ||
| 16 | 1ELF16V | 1ELF16V/D |
APPLICATION :
- EMI suppression of frequency converters for asynchronnous motors
- EMI suppression of swithing power supplies
- EMI suppression of DC converters
- EMI suppression of individual sources of interference
- Increasing of EMI suppression quality, it is the transition from EMI suppression for industrial limit to limit for residential areas.
